Description

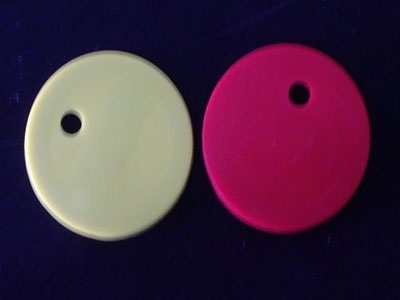

Available in different dimensions, the RFID disc tag is designed with a hole or without a hole in the middle for special tracking usage, such as patrol application. Laminated with PVC material, the mini RFID disc is waterproof, dustproof and resistant to immersion in salt water, alcohol, oil.And it offers a read range from 5cm to 30cm according to different DAILY RFID readers.

And available with the diverse chips, for instance, EM4001and Mifare-One S50, this adhesive RFID disc tag gradually comes out in industry as an ideal solution. Moreover, it can be designed with its housing materials of PET or PVC.

Specification

l       Type: Contactless R/O or R/W

l       Operating Frequency: LF(125KHz / 134.2KHz) or HF (13.56MHz)

l       IC Available at 125KHz: EM4102, EM4100, EM4001, TK4100, GK4100

l       IC Available at 13.56MHz:

I-CODE (ISO 15693-3), Mifare® Ultralight (ISO 14443A), Mifare®1K (ISO 14443A), Mifare®4K (ISO 14443A), Tag-it™ HF-I (ISO 15693-3), others upon request

l       Size:

l       Reading Distance: 5cm ~ 30cm (Reader Dependant)

l       Material: PVC / PET / 3M® Glue

l       Operating Temperature: -40º C to +80º C

l       Storage Temperature: -40º C to +100º C

Competitive Advantage

1.   Waterproof IP 68

2.   3M® Glue adhesive available

3.   100, 000 times reading & writing

4.   Excellent read/write performance on non-metal surface

5.   Exceptional temperature and harsh environmental performance

DAILY RFID is able to design and develop RFID tags and RFID readers in different sizes and different shapes for your different requirement. For more info about RFID products please kindly visit our website or email us , we will contact you as soon as possible.

Remark:

1. Specifications are subject to change, please pay attention to our latest one.

2. DAILY RFID reserve the right to the final interpretation of the above terms.
